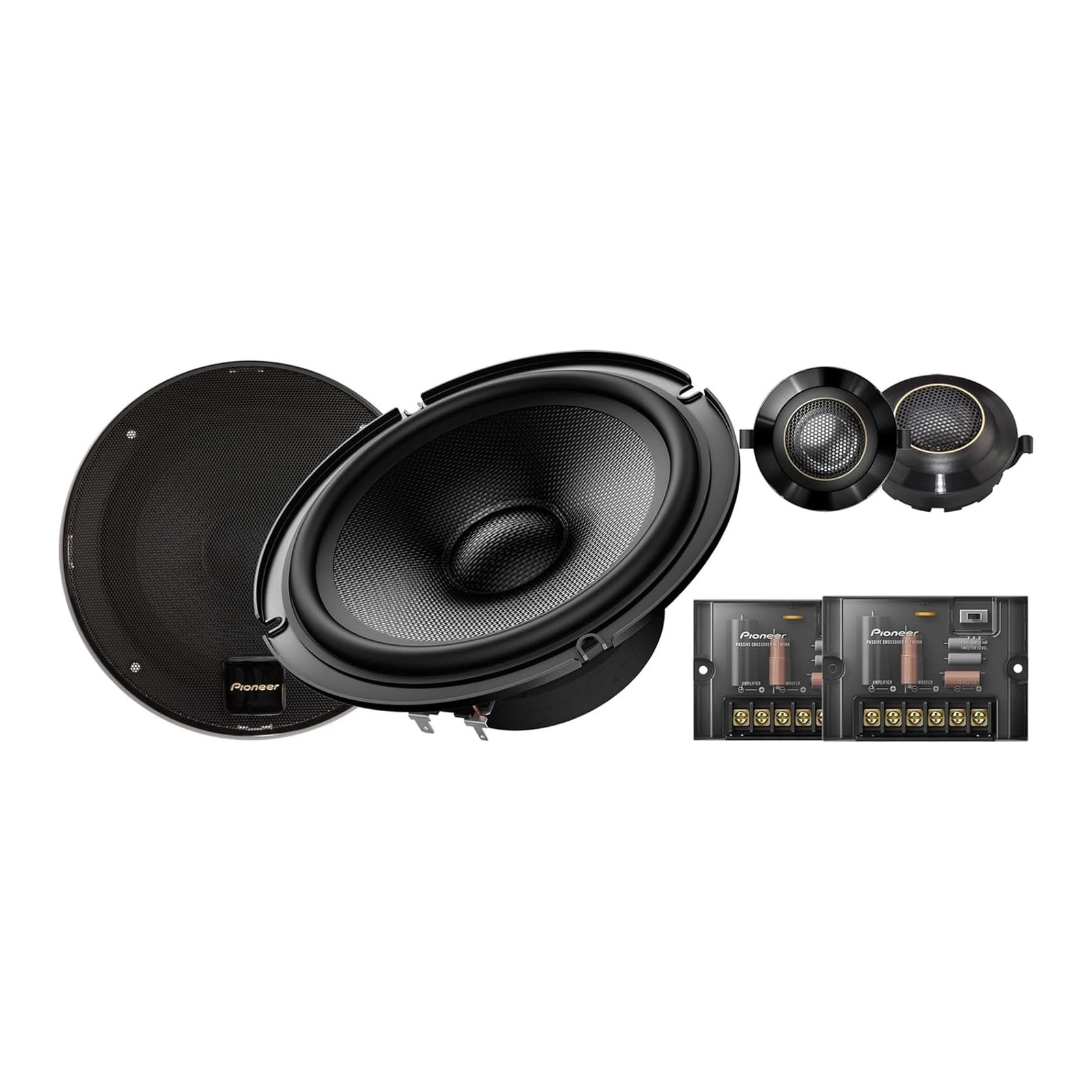

Pioneer TS-Z65CH 6.5" Z-Series 2-Way Component Speaker System

Pioneer TS-Z65CH 6.5" Z-Series 2-Way Component Speaker System (TSZ65CH)

The Pioneer TS-Z65CH is a 6.5" 2-way component speaker system from the Z-Series, the top Pioneer speaker line, built for Hi-Res Audio. Its woofers use a dual-layer Twaron aramid and cellulose fiber cone with a 15.2 oz magnet, and the 29 mm aluminum alloy dome tweeters use a VERTEX drive and reach up to 96 kHz. External crossover networks and a swivel tweeter mounting kit round out the set. It suits sound-quality builds powered by an amplifier.

Features

• Hi-Res Audio certified

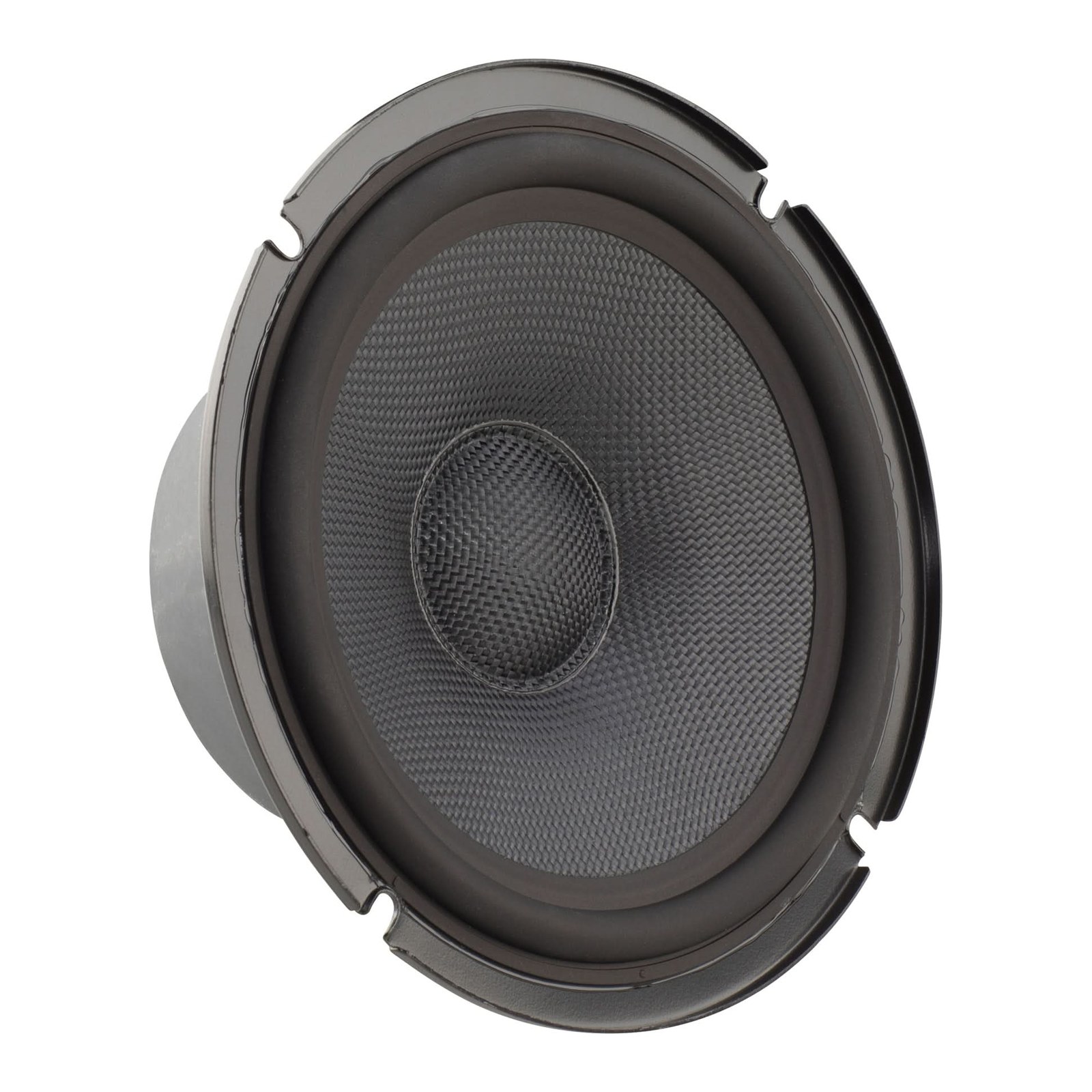

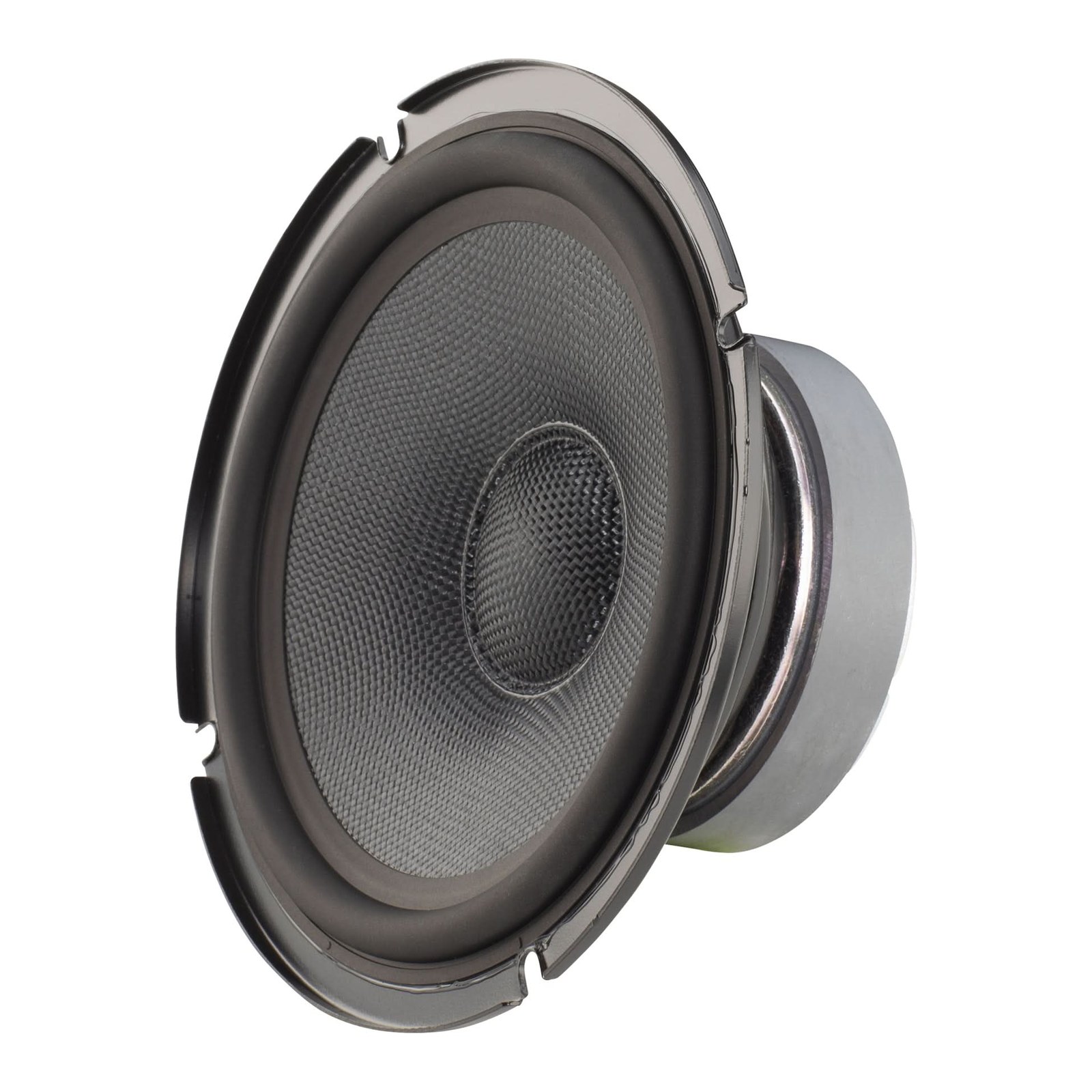

• 6.5" Twaron aramid + cellulose fiber dual-layer woofer cone
• 29 mm HSDOM aluminum alloy dome tweeter with VERTEX drive
• External crossover networks
• Swivel tweeter mounting kit

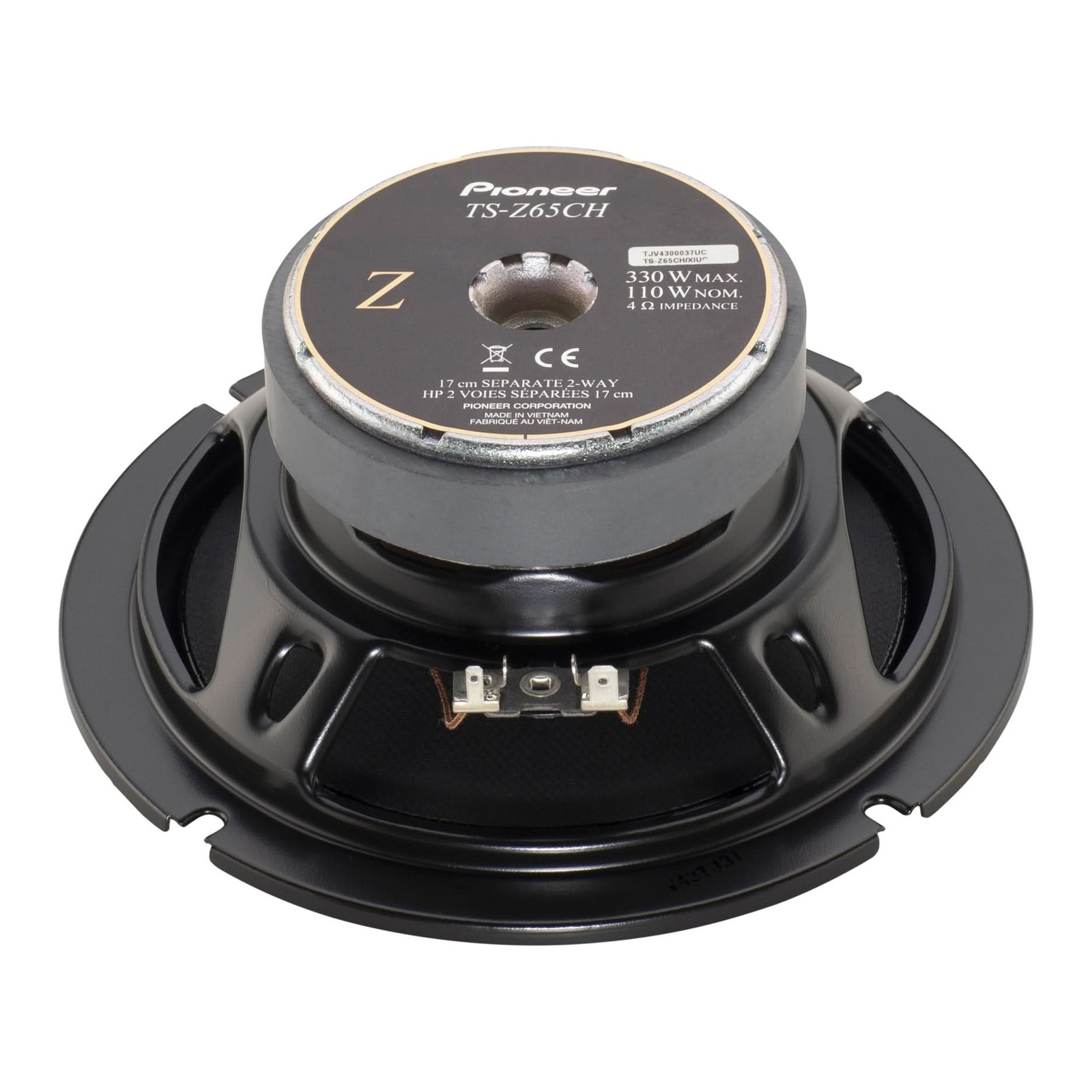

• 15.2 oz woofer magnet
• 330W max / 110W nominal power handling

Specs

• Woofer size: 6.5" (6-1/2")
• Type: 2-way component
• Max power: 330W
• Nominal (RMS) power: 110W
• Impedance: 4 ohm
• Sensitivity: 85 dB (1W/1m, ±1.5 dB)
• Frequency response: 30 Hz–96 kHz
• Hi-Res certified: Yes
• Crossover: 4500 Hz acoustic / 1900 Hz electric
• Mounting depth: 2-1/2" woofer, 5/8" tweeter
• Woofer cutout: 5-5/8"
• Woofer cone: Twaron aramid + cellulose fiber dual-layer
• Tweeter: 29 mm (1.14") HSDOM aluminum alloy dome, swivel
• Tweeter mounting: 2" hole, 2-3/8" outer diameter, 1/2" protrusion
• Woofer magnet: 15.2 oz

Professional installation available at Tunes & Tint in Amarillo.
