Pioneer TS-D69C 6"×9" D-Series 2-Way Component Speaker System

Pioneer TS-D69C 6"×9" D-Series 2-Way Component Speaker System (TSD69C)

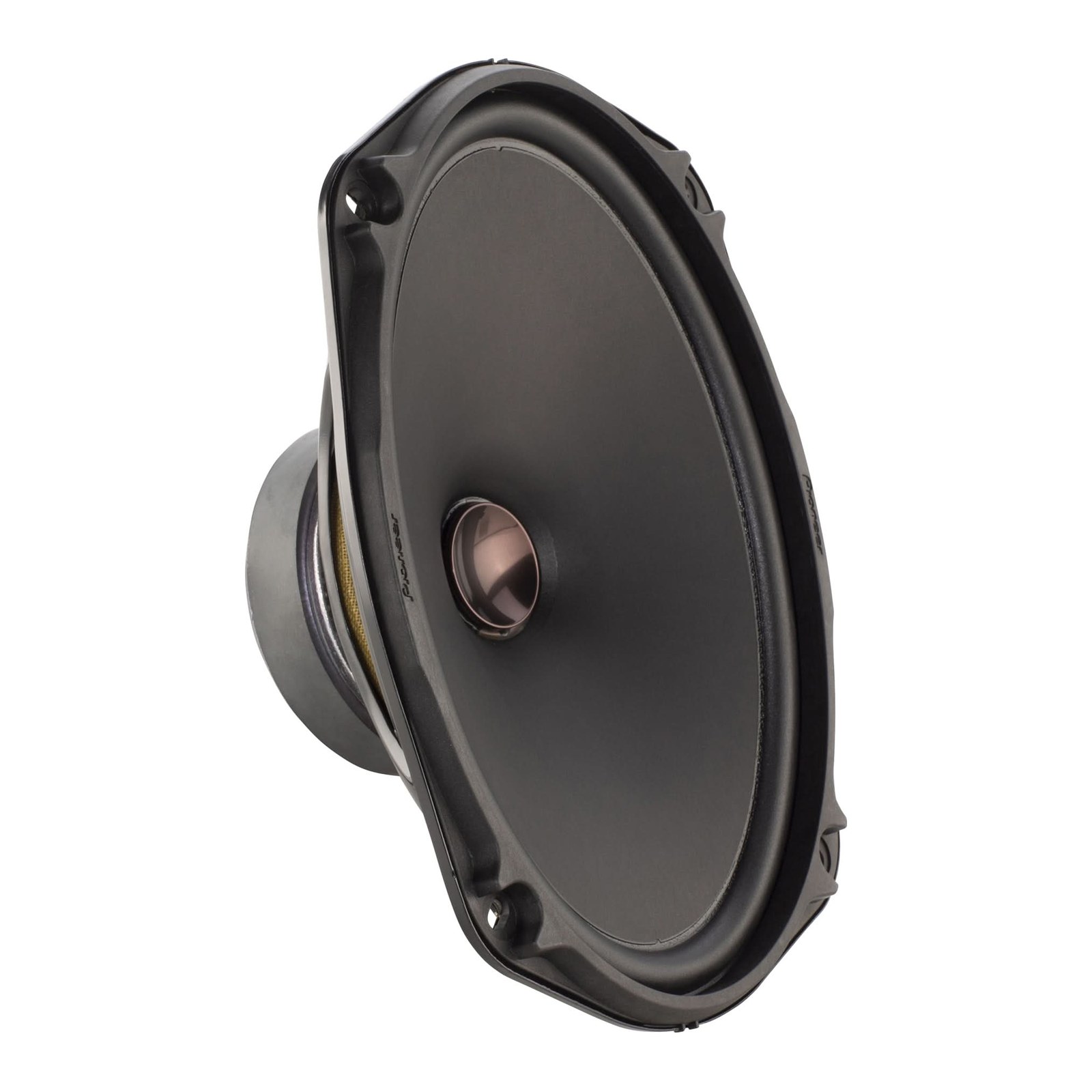

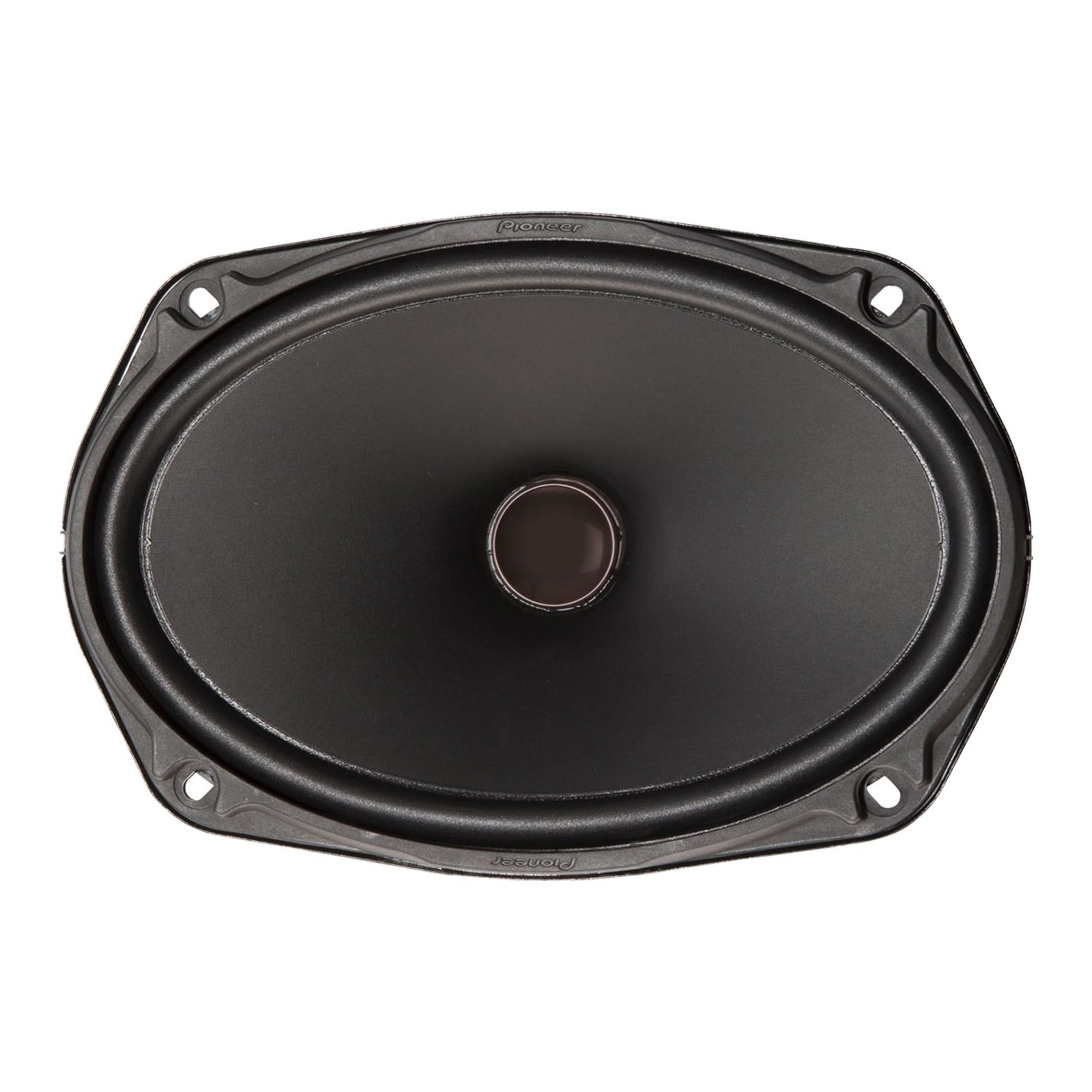

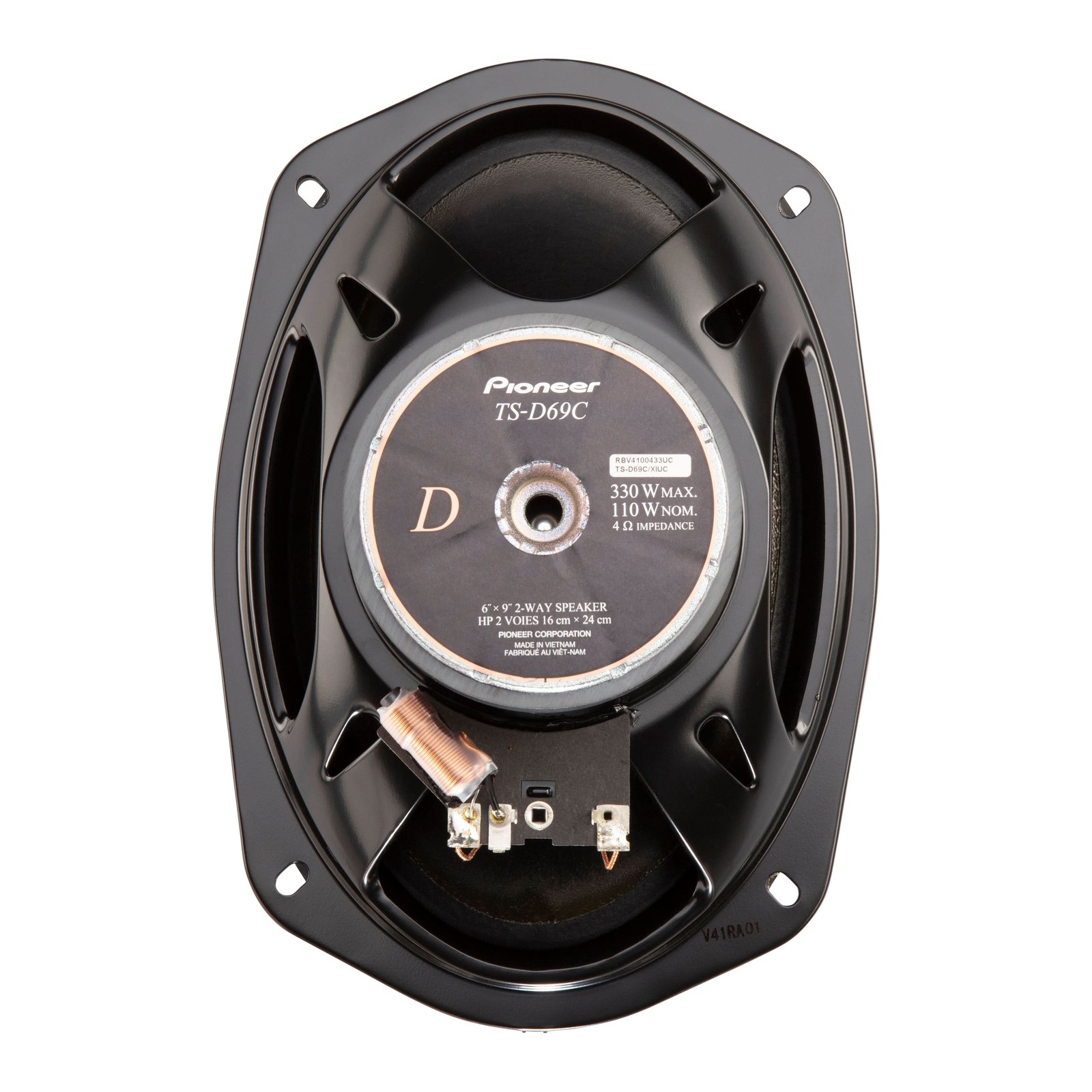

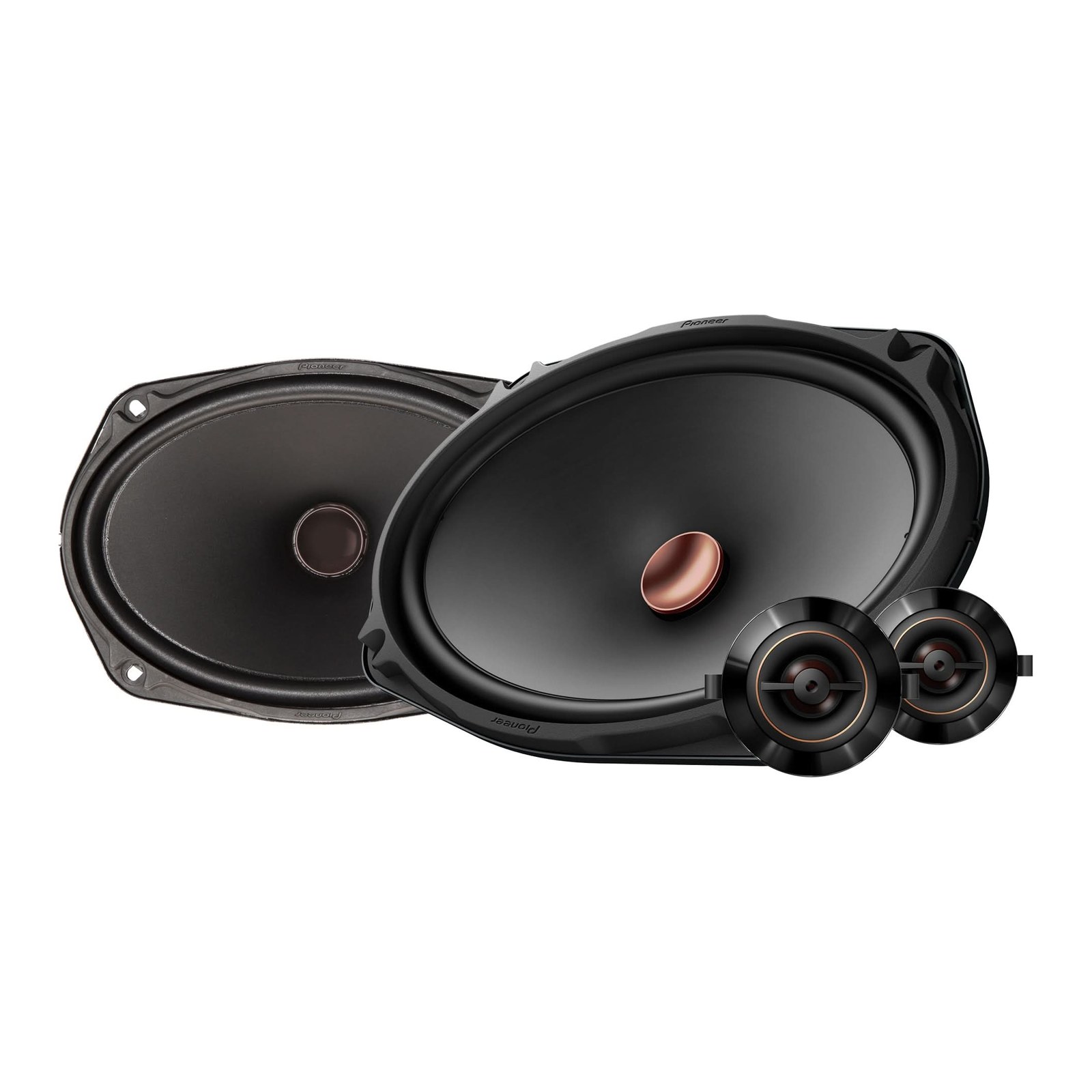

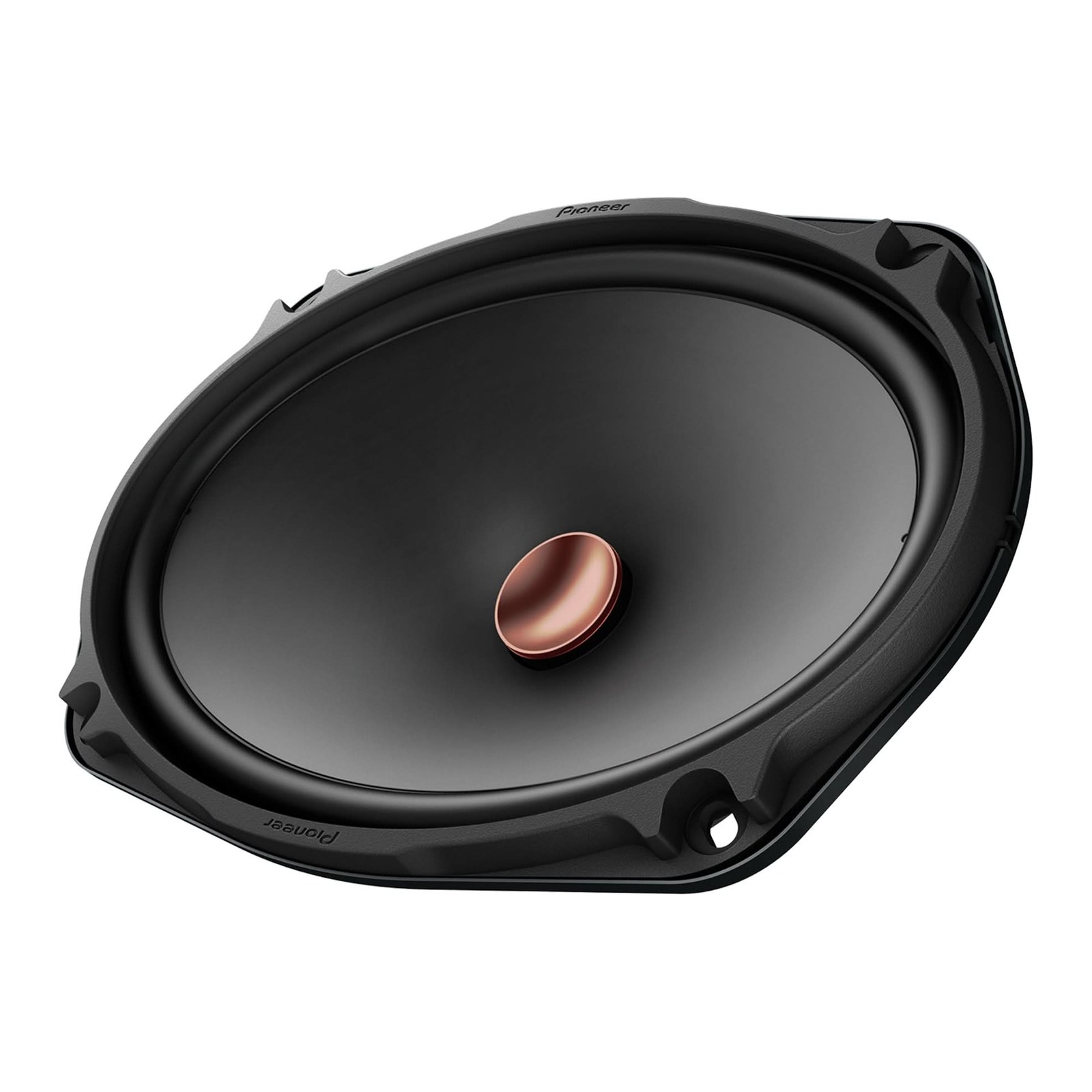

The Pioneer TS-D69C is a 6"×9" 2-way component speaker system from the D-Series. It pairs aramid fiber interlaced IMPP woofers with separate 26 mm soft dome tweeters on pivoting mounts, so the highs can be aimed even when the speakers sit off-axis. Flush, surface and under-trim mounting options give more choices for tweeter placement. It suits anyone with 6"×9" locations who wants a component-style setup.

Features

• 6"×9" aramid fiber interlaced IMPP woofer cones
• Separate 26 mm polyester soft dome tweeters
• Swivel tweeter mounting kit for aiming highs
• Flush, surface and under-trim tweeter mounting options
• 330W max / 110W nominal power handling
• 86 dB sensitivity

Specs

• Woofer size: 6"×9"
• Type: 2-way component
• Max power: 330W
• Nominal (RMS) power: 110W
• Impedance: 4 ohm
• Sensitivity: 86 dB (1W/1m, ±1.5 dB)
• Frequency response: 33 Hz–49 kHz
• Crossover: 5600 Hz acoustic / 3500 Hz electric
• Mounting depth: 2-7/8" woofer, 5/8" tweeter
• Woofer cutout: 8-3/4" × 6"
• Woofer cone: Aramid fiber interlaced IMPP
• Tweeter: 26 mm (1.02") polyester soft dome, swivel
• Tweeter mounting: 2" hole, 2-3/8" outer diameter, 1/2" protrusion
