Pioneer RD-RGB150A 49" Extension Cable Kit for Modular NEX Receivers

Pioneer RD-RGB150A 49" Extension Cable Kit for Modular NEX Receivers (RDRGB150A)

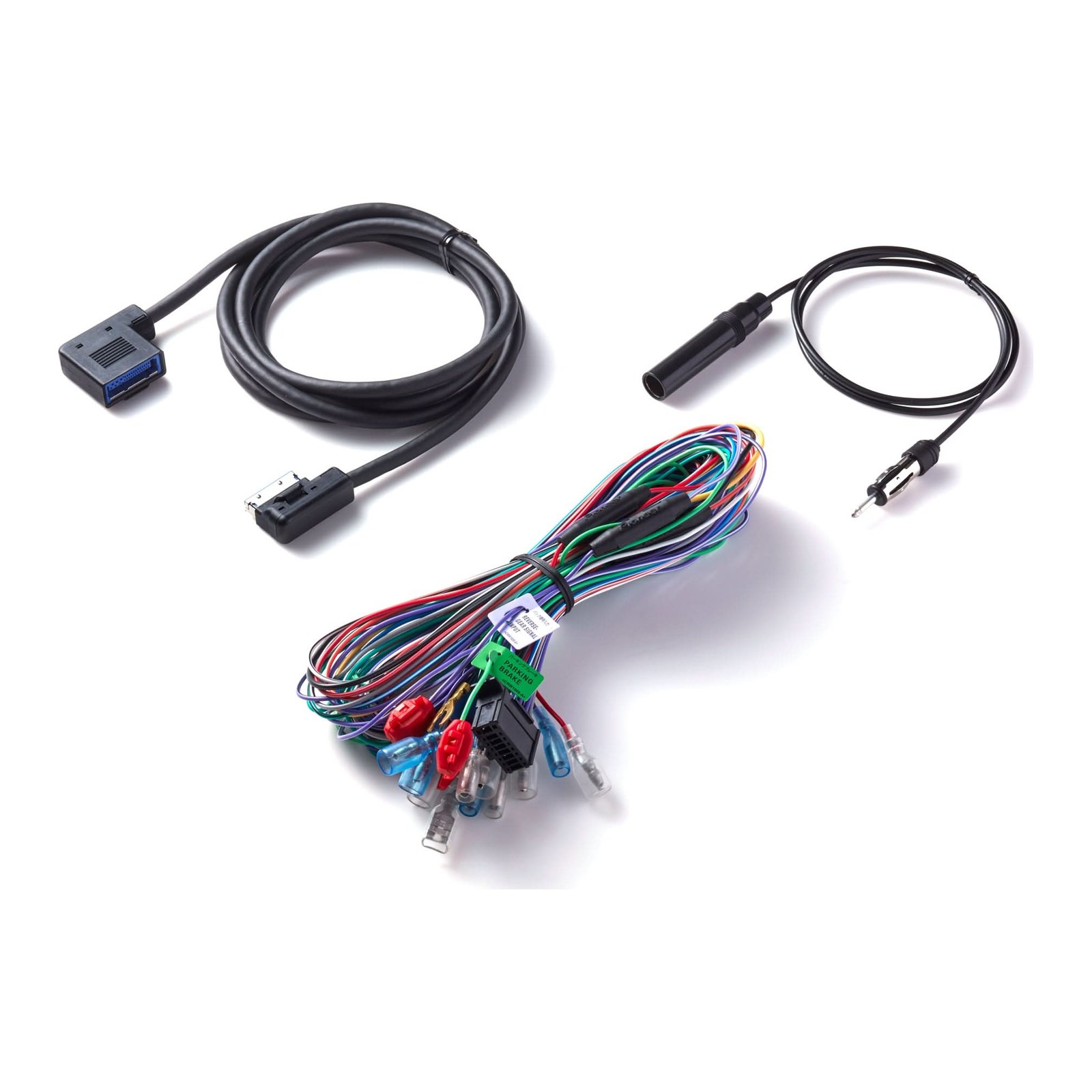

The Pioneer RD-RGB150A is a 49" (1.5 m) cable extension kit for Pioneer non-DIN modular receivers. It is needed when the hidden AV module has to be mounted farther from the display than the standard cables reach. The kit extends the RGB/data link, the power and speaker harness and the FM antenna lead, and suits installers placing the module deeper in the dash.

Features

• 49" (1.5 m) extension length
• Male/female RGB data cable links the AV module to the display
• Power/speaker harness extension
• Male/female FM antenna extension cable
• Required for remote installation of the hide-away module
• Made for select Pioneer DMH-C and DMH-WC modular receivers

Specs

• Model: RD-RGB150A
• Type: Modular receiver cable extension kit
• Length: 49" (1.5 m)
• RGB data cable: 1 male/female (AV module to display)
• Power/speaker harness extension: 1
• FM antenna cable: 1 male/female
• Use: Required for remote installation of the hide-away module
• Compatibility: DMH-WC6600NEX, DMH-WC5700NEX and select Pioneer DMH-C and DMH-WC modular receivers

Professional installation available at Tunes & Tint in Amarillo.
