Pioneer DMH-C2550NEX 6.8" Modular CarPlay & Android Auto Receiver

Pioneer DMH-C2550NEX 6.8" Modular CarPlay & Android Auto Receiver (DMHC2550NEX)

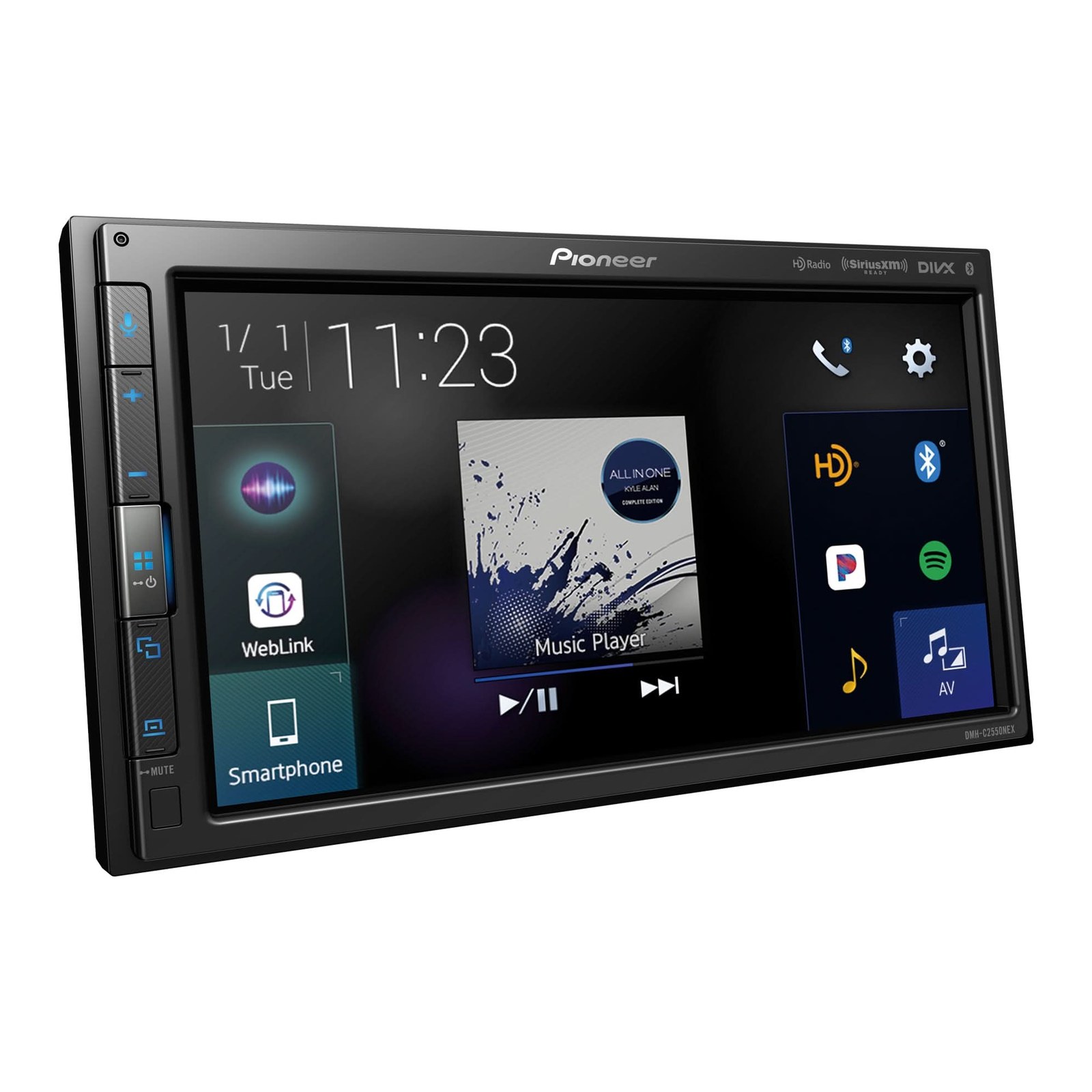

The Pioneer DMH-C2550NEX is a modular digital multimedia receiver. Its 6.8" capacitive touchscreen mounts separately from a hideaway chassis that holds the processor, tuner, amplifier and all input and output connections. It supports wired Apple CarPlay and Android Auto, built-in Bluetooth, built-in HD Radio and SiriusXM-Ready. It suits installs where a standard DIN opening is not the right fit for the screen.

Features

• Modular design: 6.8" WXGA capacitive display mounts apart from a hideaway chassis

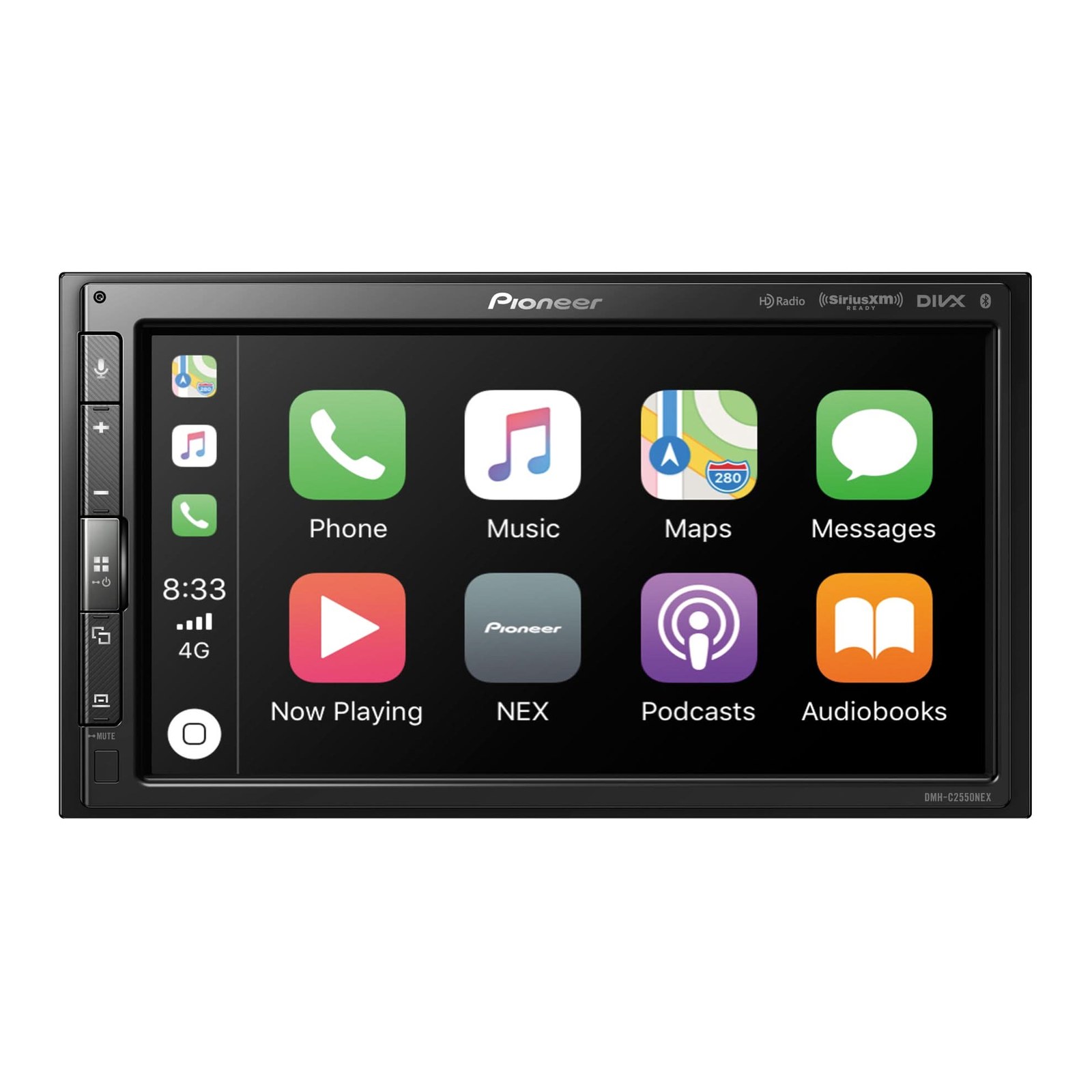

• Wired Apple CarPlay

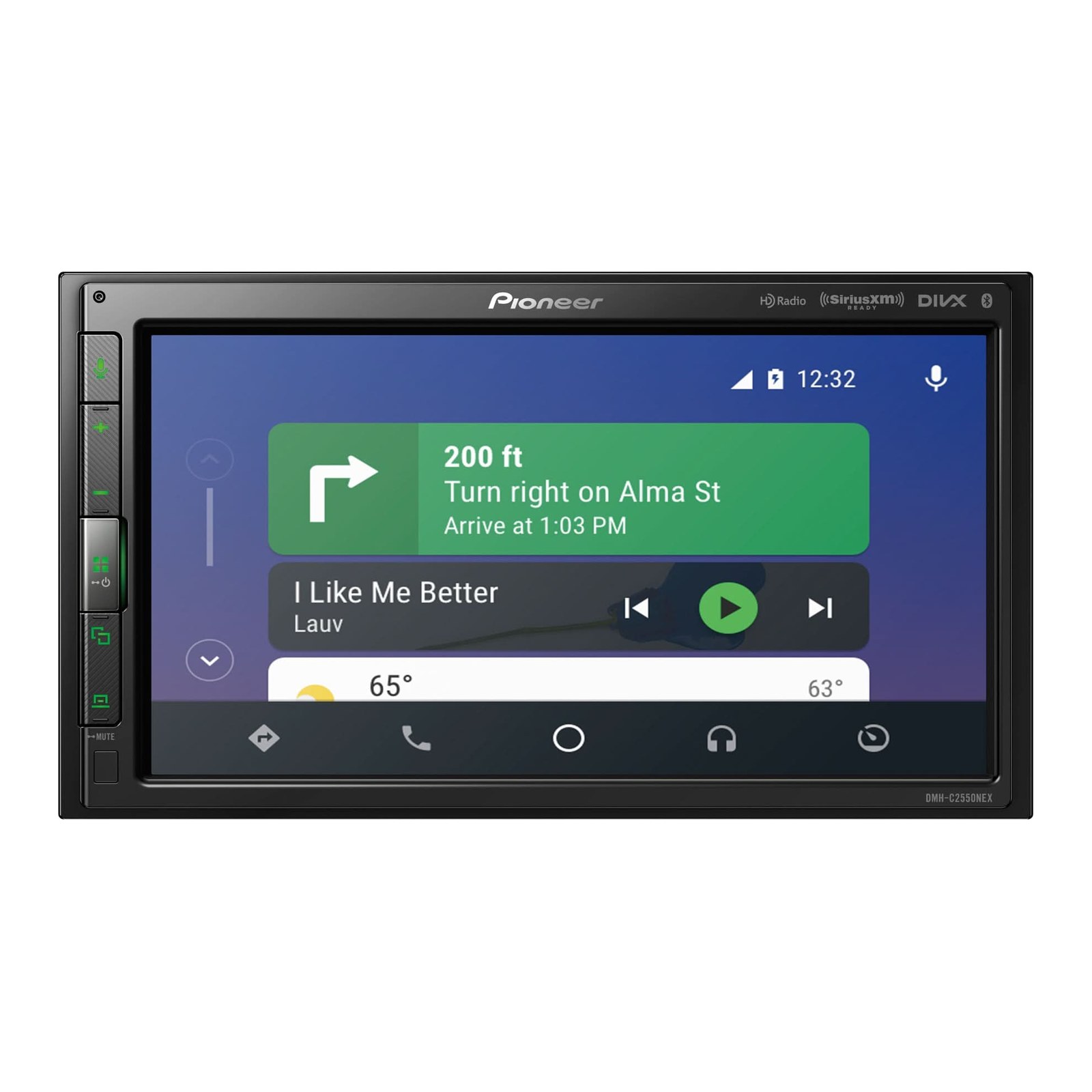

• Wired Android Auto
• Built-in Bluetooth
• Built-in HD Radio
• SiriusXM-Ready
• Amazon Alexa via the Pioneer Vozsis app
• iDatalink Maestro compatible
• 6-channel 4V preouts

Specs

• Screen: 6.8" 16:9 WXGA capacitive touchscreen
• Chassis: Modular, non-DIN (display plus hideaway AV unit)
• Max power: 50 W × 4 (4 ohm); 50 W × 2 (4 ohm) + 70 W × 1 subwoofer (2 ohm)
• RMS power (CTA-2006): 14 W × 4 (4 ohm)
• Preouts: 6-channel, 4V
• Camera inputs: Dedicated back-up camera input, plus A/V input usable for a 2nd camera
• USB: Type-A at hideaway unit (5V, 1.5A)
• Apple CarPlay / Android Auto: Wired USB
• Bluetooth: A2DP, AVRCP 1.6, hands-free, dual phone connection, 5-phone registration
• EQ: 13-band graphic, Auto EQ (CD-MC20 mic sold separately)
• Crossover: Standard (HPF/LPF) and Network (HPF/band pass/LPF) modes, auto and manual time alignment
• Tuner: Built-in HD Radio, SiriusXM-Ready; 18 FM, 6 AM presets
• OEM integration: iDatalink Maestro RR
• Voice assistant: Amazon Alexa via Pioneer Vozsis app

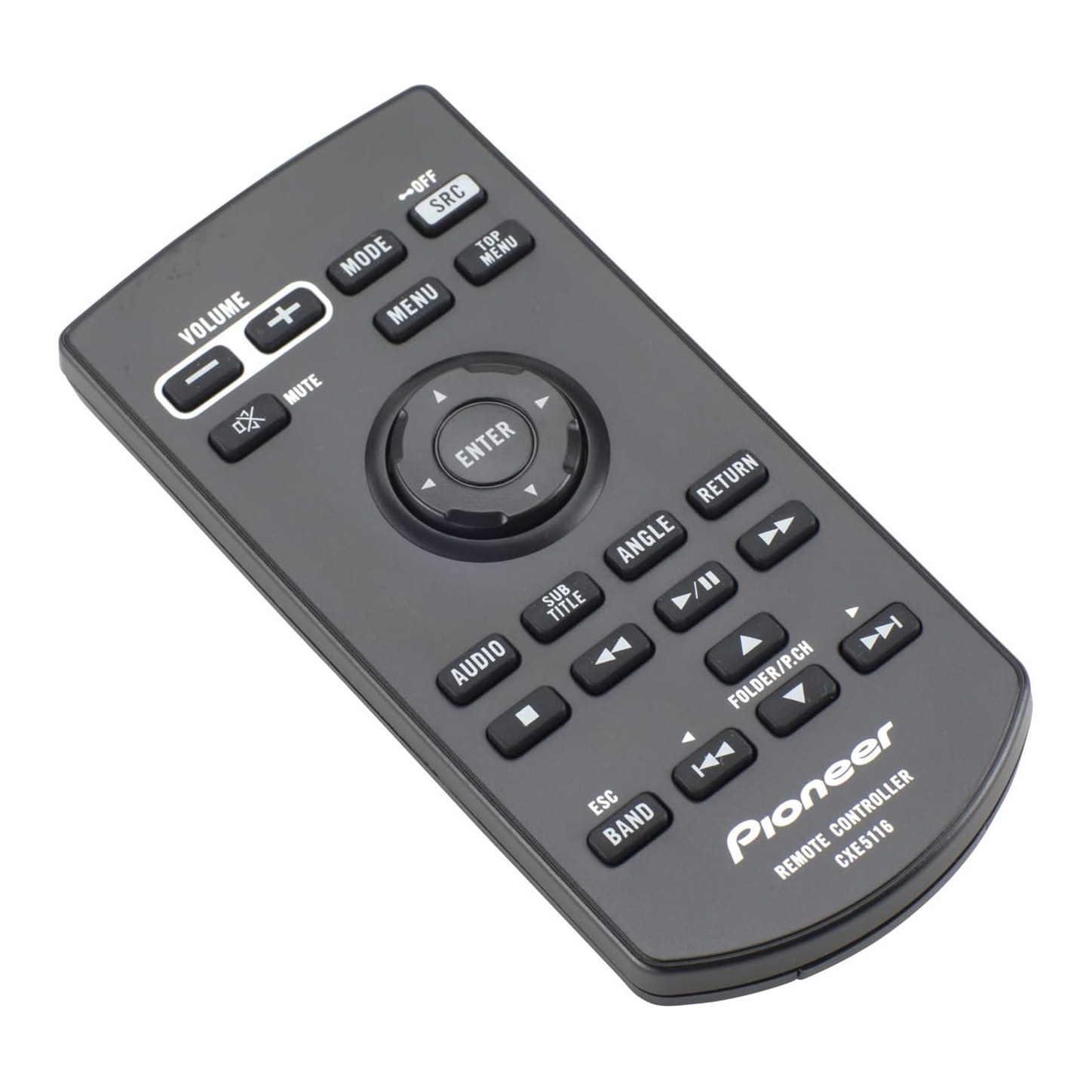

• Remote control: Included

Professional installation available at Tunes & Tint in Amarillo.
