Platinum100 Long Range Portable Radar Detector

Platinum Performance With Optional Remote Control and Laser Defuser Confidence.

Detects and alerts to every FCC approved North American police radar frequencies.

Specifications	Technical
Operating Frequencies	10.500 – 10.550 GHz (X-Band) 23.950 – 24.285 GHz (K-Band) 33.400 – 36.000 GHz (Ka-Band) 830 – 945 nanometers (Laser)
K-Band Selectivity: K Narrow K Wide (DEFAULT SETTING) K Extended	Scans specific K-Band frequency ranges 24.080-24.200 GHz 24.026-24.285 GHz 23.950-24.285 GHz
Ka-Band Selectivity: Ka Narrow Ka Wide (DEFAULT SETTING)	Scans 100 GHz above/below the most important frequencies 33.7-33.9 GHz / 34.6-34.8 GHz / 35.4-35.6 GHz 33.4-36.00 GHz
Power Requirements	10.05 – 16.0 Volts DC negative ground 185 mA typical standby
Dimensions	4.50 in. L x 3.50 in. W x 1.45 in. H
Weight	6.2 oz.
Optional Wireless Remote Control	3.07 in. L x 1.43 in. W x .45 in. D (CR2032 Cell Battery)
Optional Expert Control Unit	1.76 in L x 0.76 in W x 0.35 in H w/attached 8′ cable
Radar Receiver Type	DLNA, Dynamic Low Noise Amplifier
GPS Receiver Type	SiRFstar III

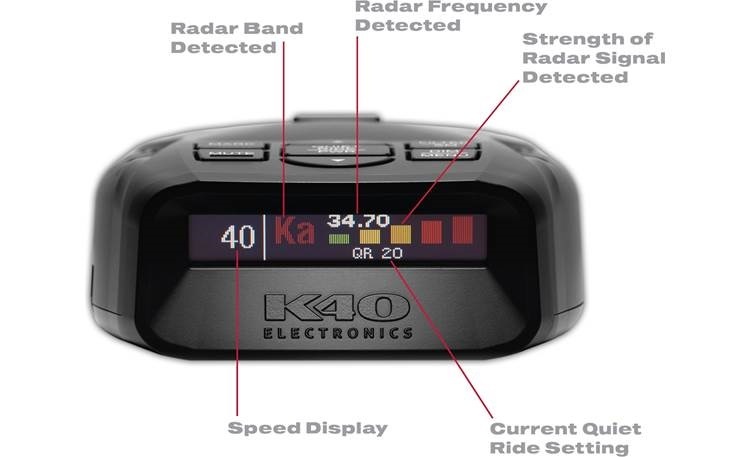

Signal Strength Indicators	Audible Geiger and visual signal strength indicators
RDD Guard	Protection from Radar Detector Detectors
Temperature Range	-40° – +165° Fahrenheit
Coiled Power Cord	3’2″ coiled length / 4’6″ Stretched length – 1.3mm center tip positive – F2AL 2 Amp fuse.
Straight Power Cord	10′ Length – 1.3mm center tip positive – F2AL 2 Amp fuse.
